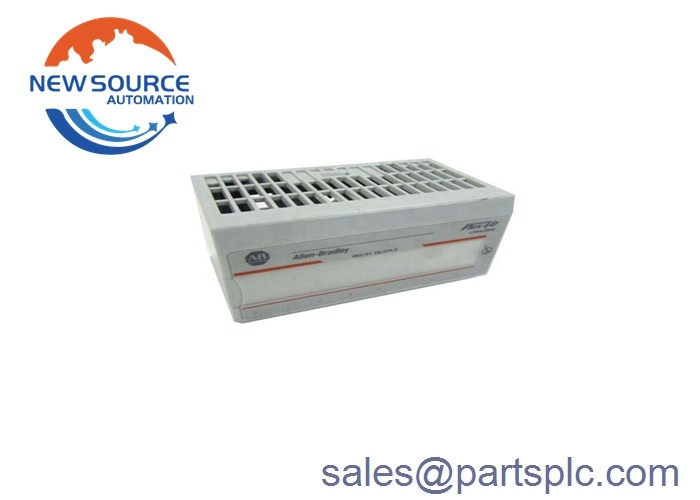

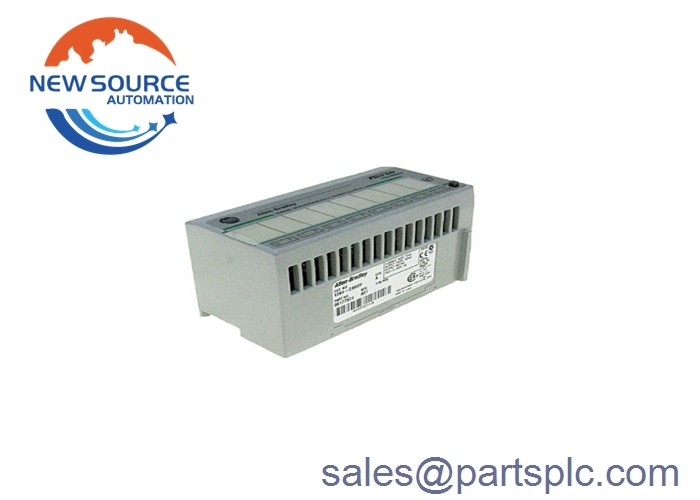

1769-L30 CompactLogix 5370 Programmable Automation Controller

1769-L30 CompactLogix 5370 Programmable Automation Controller (PAC) series

1769-L30 compact Logix processor module can support up to 16 I/O modules with 2 expansion cables on a maximum of 3 I/O banks. Each I/O bank requires its own power supply, and only one 1769-L30 processor module or any Logix controller module can be connected to a compactLogix system at a time. The 1769-L30 can be used anywhere in an industrial area.

The 1769-L30 can communicate with any device through an RS-232 port with either a 1747-CP3 or a 1756-CP3 programming cable. It has a user memory of 256 KB and runs on RS5000 software. The 1769-L30 has a current backplane of 800 mA at +5V DC and 0 mA at +24V DC. It has an operational temperature range between 0 deg to 60 deg. C (32 deg to 140deg F), at a 5% to 95% non-condensing relative humidity.

The 1769-L30 has a key switch on the front panel for controlling the operation mode. The 1769-L30 has the following key switch functions (RUN, PROG, REM) which can either be used to run the program, enable or disable outputs, or change between the remote program on the controller. The 1769-L30 can be mounted using either a panel mounting or a DIN rail. It has an operational vibration of 10G at 500HZ and a shock rating of 30G.

The 1769-L30 has a weight of 360g (0.792 lbs), and a dimension of 118 mm (4.649 in.) by 50 mm (1.97 in.) by 87 mm (3.43 in.). It has a 1747-BA battery, a 1 kV galvanic gun surge immunity (IEC61000-4-5), and a 10V, 0.15 to 80 MHz IEC61000-4-6 certified conduction immunity.
