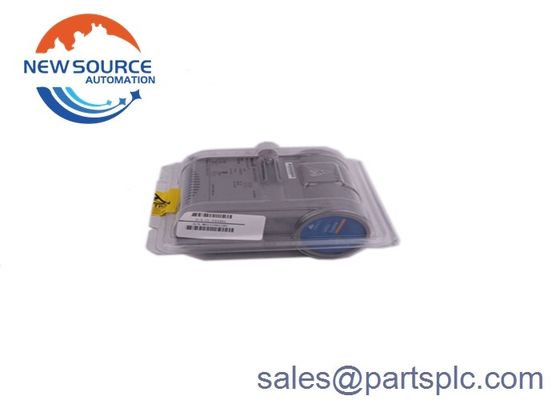

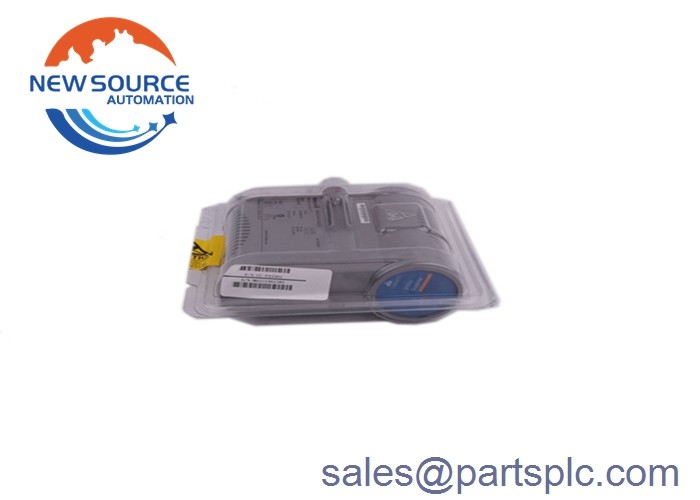

8C-TDODB1 Dcs Honeywell Controller Module Electric Control Original

Architecture Overview

Honeywell’s C300 Controller provides powerful and robust control for the distributed control system (DCS). The C300 is a node in operating Honeywell’s field-proven deterministic Control Execution Environment (CEE) core software. The CEE software provides a superior control execution and scheduling environment. Control strategies for each controller node are configured and loaded through a common Control Builder, an easy and intuitive engineering tool. In addition to a standard and robust library of pre-built function blocks and algorithms, the C300 Controller also supports Custom Algorithm Blocks (CABs). Custom Algorithm Blocks are similar in purpose and structure to the standard function blocks that are distributed with Control Builder. However, CABs have user-defined algorithms and data structures, allowing custom tailored strategies to be developed to specific requirements. The C300 controller shares its hardware design with the Series 8 I/O, offering an innovative design that reduces footprint and installation and maintenance costs. The C300 controller module is mounted on the C300 Input Output Termination Assembly (IOTA). The C300 IOTA contains only passive devices such as FTE address switches. Figure 1 below depicts the IOTA components.





Experion Controller Overview
Honeywell offers multiple ExperionPKS controllers, ranging from embedded controller platforms with dedicated IO hardware to PC based control environments for supervisory control tasks or simulation. They all support one or more different network types to integrate the controllers with the ExperionPKS Server. They share a common Control Execution Environment (CEE) software infrastructure and a common builder tool. Together with the different station types, they form the ExperionPKS system. This specifications document provides details specifically related to the ExperionPKS C300 controller.

If you need below products, please contact us
: 1785, ICS Triplex, 1746, 1747, 1756........
Schneider: MODICON, QUANTUN 140 Series.........
General electric: IC693, IC697, IC695, IS200, DS200.....
SIEMENS: 6ES5, 6DD, 6DP, 6SE7-400......
Foxboro:FBM203,FCP240/270.....
ABB: BAILEY, DSQC, 800XA.......
Bentley Nevada: 3500/3300 Series
Honeywell: TC, TK, CC, 8C, MC, MU...
