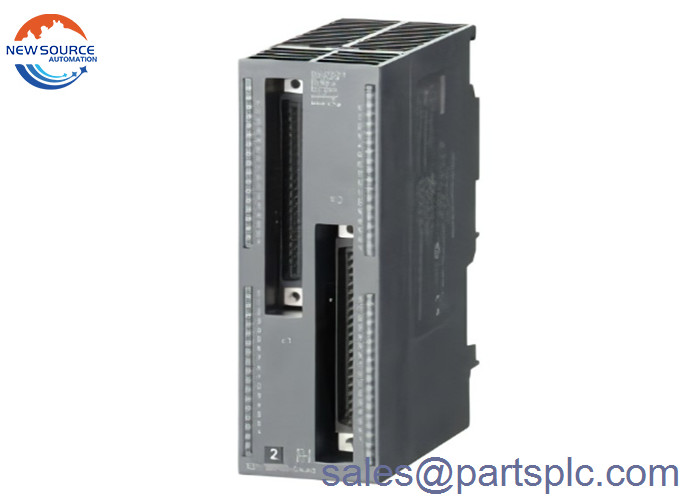

Siemens SIMATIC 6ES7322-1BP00-0AA0 Digital Output Sourcing Module

6ES7322-1BP00-0AA0

SIMATIC S7-300 DIGITAL OUTPUT SM322, OPTICALLY ISOLATED IN GROUPS OF 16, 64 DO, DC 24V, 0.3A, (SOURCING) TOTAL CURRENT 2A/GROUP 8A/MODULE TERMINAL BLOCKS 6ES7392-1.N00-0AA0 AND CABLES 6ES7392-4...0-0AA0 NECESSARY

● Rated value (DC) 24 V
● permissible range, lower limit (DC) 20.4 V
● permissible range, upper limit (DC) 28.8 V
Input current
from load voltage L+ (without load), max. 75 mA
from backplane bus 5 V DC, max. 100 mA
Power loss
Power loss, typ. 6 W
Digital outputs
Number of digital outputs 64
Limitation of inductive shutdown voltage to L+ (-53 V)
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
● lower limit 80 Ω

Permissible potential difference
between different circuits 75V DC/60V AC
Isolation
Isolation tested with 500 V DC
Connection method
required front connector Cable: 6ES7 392-4Bxx0-0AA0 terminal blocks: 6ES7 392-1xN00-
0AA0
Dimensions
Width 40 mm
Height 125 mm
Depth 112 mm
Weights
Weight, approx. 230 g
