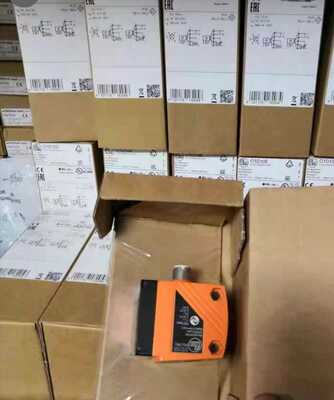

O1D100 IFM Laser Distance Sensor 0.2-10m Measurement Range IO-Link IP67 Industrial Device

### Product Overview The IFM O1D100 is a high-precision laser distance sensor engineered for reliable non-contact distance measurement in demanding industrial environments. Equipped with Class 2 laser technology (650 nm), this sensor delivers accurate distance detection across a wide range, complemented by dual programmable outputs and intuitive operation—making it an ideal solution for automation, material handling, and quality control applications.

Core Features

• Dual Output Flexibility: Configurable digital outputs (NO/NC) + scalable analog output (4-20 mA / 0-10 V) for versatile integration
• Precision Laser Technology: 650 nm visible laser with <15×15 mm light spot diameter (at 10 m) ensures targeted measurement
• Extended Measurement Range: 0.2-10 m detection range (for 200×200 mm white paper, 90% remission) with up to 19 m application range
• Intuitive Operation: 4-digit alphanumeric display + status LEDs for real-time distance monitoring and parameter adjustment
• Robust Industrial Design: Diecast zinc housing with IP67 protection, resistant to dust, moisture, and harsh operating conditions
• Enhanced Reliability: Reverse polarity protection, pulsed short-circuit protection, and overload protection for maximum operational safety
• IO-Link Compatibility: Complies with IEC 61131-9 standard for seamless integration into smart factory systems
• Wide Environmental Adaptability: Operates in -10°C to 60°C ambient temperature with 100 klx light immunity

Technical Specifications

Application Scenarios

• Warehouse and logistics automation (shelf height detection, pallet positioning)
• Conveyor systems (object sorting, distance monitoring)
• Assembly line quality control (part positioning, gap measurement)
• Material handling equipment (load positioning, anti-collision systems)
• Packaging machinery (fill level monitoring, product dimension verification)
• Industrial robotics (target tracking, positioning feedback)
• Smart factory IoT systems (data collection via IO-Link)

Compliance & Certification

• cULus Listed (Supply Class 2)
• RoHS Compliant
• Laser Notice No. 56 (2019) Compliance
• IEC 61131-9 (IO-Link Standard)
• EN/IEC 60825-1:2007/2014 (Laser Safety)
• EMC Compliance: EN 60947-5-2

Supply Scope

• 1 × O1D100 Laser Distance Sensor
• Product Documentation
• Optional Accessory: Protective Cover (E21133)

Key Advantages

• Versatile output configuration (digital + analog) for flexible system integration
• Visible laser and digital display enable quick setup and alignment
• Robust IP67 rating ensures reliable operation in harsh industrial environments
• IO-Link compatibility supports Industry 4.0 smart manufacturing initiatives
• Wide operating temperature range (-10°C to 60°C) for extreme environment adaptability
• Low power consumption (<150 mA) for energy-efficient operation
• Long MTTF (182 years) minimizes downtime and maintenance costs
