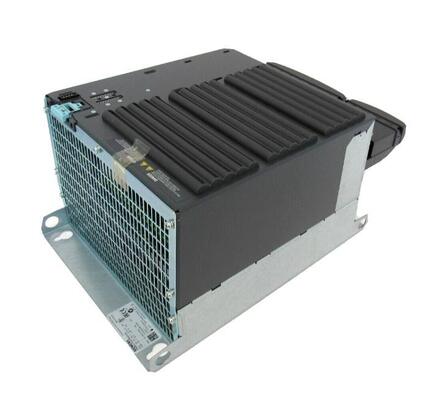

Siemens 6SL3224-0BE38-8UA0 G120 Power Module

The6SL3224-0BE38-8UA0is a power module from Siemens' renowned SINAMICS G120 series of modular low-voltage converters, designed for demanding industrial drive applications requiring high performance, flexibility and reliability. As a core component of the G120 modular system, this power module pairs with compatible control units to deliver precise speed and torque control for three-phase AC motors, making it ideal for a wide range of industrial automation scenarios. At partsplc.com, we supply this authentic Siemens component with full manufacturer warranty compatibility and fast global shipping to meet your industrial equipment upgrade, replacement and new project deployment needs.

Product Overview

The SINAMICS G120 series is Siemens' next-generation modular converter platform that separates power units and control units, allowing users to customize configurations based on specific application requirements. The 6SL3224-0BE38-8UA0 is a 90kW rated power module designed for operation with 380-480V three-phase input grids, featuring compact construction, advanced protection features and excellent dynamic response. It supports a wide range of motor control modes including V/f control and vector control, meeting the diverse requirements of different industrial loads from fans and pumps to heavy-duty material handling equipment.

This power module retains all the core advantages of the G120 series, including integrated safety functions, high energy efficiency, and easy commissioning and maintenance via Siemens' Totally Integrated Automation (TIA) portal. Whether you are retrofitting an existing production line or building a new automated system, the 6SL3224-0BE38-8UA0 delivers consistent, stable performance to keep your drive systems running efficiently.

Key Technical Specifications

Core Features and Advantages

1. Modular Design for High Flexibility

As a standalone power module in the G120 series, 6SL3224-0BE38-8UA0 can be freely matched with different types of control units according to application requirements, from basic speed control to advanced motion control with position feedback. This modular design not only reduces upfront procurement costs, but also makes it easier to replace components during maintenance, minimizing downtime for industrial equipment.

2. Excellent Energy Efficiency

The PM240 power module integrates a active power correction (AEC) circuit that maintains a high input power factor, reduces harmonic pollution to the power grid, and complies with international harmonic standards such as IEC 61000-3-12. For applications with regenerative loads, the module supports energy recovery options, effectively reducing system energy consumption and operating costs over the product lifecycle.

3. Integrated Safety Functions

The 6SL3224-0BE38-8UA0 supports standard safety functions when paired with appropriate G120 control units, including Safe Torque Off (STO), which meets the requirements of SIL 2 / PL d safety level, eliminating the need for additional external safety components. This simplifies system design, reduces installation space and improves the overall safety level of industrial equipment.

4. Comprehensive Protection Mechanisms

This power module is equipped with multiple protection functions including overvoltage protection, undervoltage protection, overcurrent protection, overtemperature protection, and short circuit protection, which can effectively prevent damage to the module caused by abnormal grid conditions or load faults, extending the service life of the drive system and improving overall operational reliability.

5. Easy Integration and Commissioning

As a member of Siemens SINAMICS family, 6SL3224-0BE38-8UA0 is fully compatible with Siemens TIA Portal engineering platform, enabling fast parameter configuration, commissioning and diagnostics. The intuitive interface reduces the time required for on-site commissioning, and the integrated diagnostic function can quickly locate faults, greatly simplifying after-sales maintenance work.

Common Application Scenarios

The 90kW power rating of 6SL3224-0BE38-8UA0 makes it suitable for medium to high-power industrial drive applications, including but not limited to:

• Material handling systems: conveyor belts, cranes, lifting equipment, hoists
• Fluid processing: centrifugal pumps, fans, compressors, blowers for HVAC and industrial process systems
• Machine tools: large milling machines, lathes, grinding machines and other metal processing equipment
• Textile machinery: spinning machines, weaving machines, dyeing and finishing equipment
• Packaging machinery: large automatic packaging lines, palletizing robots and conveying systems
• Food and beverage processing: large mixers, extruders, filling production lines
• Mining and construction equipment: various medium-sized crushing, screening and conveying equipment

Ordering and Support Information at partsplc.com

At partsplc.com, all Siemens components including 6SL3224-0BE38-8UA0 are sourced through official supply channels, ensuring 100% authentic original products. We offer the following benefits to global customers:

• Competitive pricing with bulk order discounts available for large project requirements
• Fast global shipping: most in-stock items ship within 2 working days, with tracked logistics for full order visibility
• Professional technical support: our experienced engineering team can answer your questions about product selection, installation and parameter configuration
• 12-month warranty coverage for all new components, covering manufacturing defects and performance issues
• Multiple payment methods to accommodate customers from different regions, secure transaction guarantee

If you need a quotation for 6SL3224-0BE38-8UA0 or have any questions about product compatibility, please contact our customer service team through the online inquiry form or email. We will reply to your inquiry within 24 working hours to provide you with customized solutions for your industrial automation needs.

Notes on Installation and Use

• This module is rated IP20 and must be installed inside a protective control cabinet to avoid exposure to dust, moisture and mechanical damage
• Ensure adequate ventilation space around the module during installation to maintain effective cooling, follow the minimum clearance requirements specified in the Siemens manual
• Proper grounding must be implemented to comply with electrical safety standards and reduce electromagnetic interference
• Always power off the unit completely before performing any maintenance or inspection to avoid electric shock hazards
• Use only compatible Siemens G120 control units with this power module to avoid performance issues or component damage
