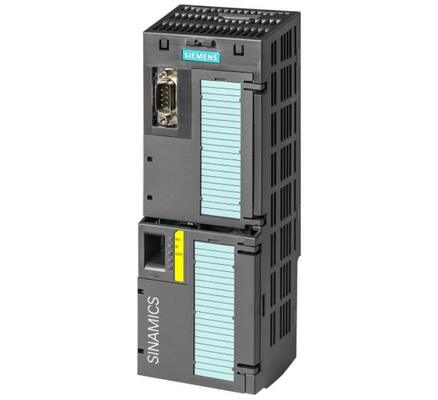

Siemens 6SL3246-0BA22-1FA0 G120 Control Unit

Product Overview

The6SL3246-0BA22-1FA0is a SINAMICS G120 series control unit manufactured by Siemens, designed as the core control module for modular inverter systems. This CU250S-2 PN control unit combines high-precision motion control with flexible industrial communication capabilities, making it ideal for a wide range of conveyor systems, material handling equipment, machine tools, pumps, fans and other industrial applications. As a proven Siemens industrial automation component, the 6SL3246-0BA22-1FA0 delivers reliable performance, flexible parameter configuration and seamless integration with PROFINET networks, meeting the demanding requirements of modern industrial automation systems for dynamic response and network connectivity.
Siemens SINAMICS G120 series is a modular inverter system that separates control units and power modules, allowing users to freely match different power levels and control functions according to actual application needs. The 6SL3246-0BA22-1FA0 as a high-performance control unit in this series, supports vector control, V/f control and positioning functions, can drive high-precision asynchronous and synchronous motors, with a wealth of on-board I/O interfaces and expandable options, to provide users with a high degree of design flexibility.

Key Technical Specifications

Core Features and Advantages

1. PROFINET Industrial Ethernet Communication

The 6SL3246-0BA22-1FA0 integrates a 2-port PROFINET IO switch, supports real-time communication and line topology, can be seamlessly connected to Siemens S7-1200, S7-1500 and other PLC systems, to achieve high-speed data exchange and centralized control. PROFINET communication not only simplifies field wiring, reduces the cost of network construction, but also supports remote diagnosis and parameter adjustment, which greatly facilitates equipment maintenance and troubleshooting.

2. High-Precision Motion Control Capability

As a high-end control unit of G120 series, CU250S-2 PN supports encoder feedback and high-precision vector control, which can achieve accurate speed and torque control. The built-in positioning function supports point-to-point positioning, homing and travel limit monitoring, can meet the basic motion control requirements of many automated devices, eliminating the need for additional positioning modules, reducing system cost and cabinet space occupation.

3. Flexible I/O Configuration and Scalability

The 6SL3246-0BA22-1FA0 has a wealth of on-board I/O resources, which can meet the control requirements of most conventional applications. It also supports the expansion of additional I/O modules via the local internal bus, which can increase the number of inputs and outputs according to actual needs, with a high degree of application flexibility. All on-board I/O can be freely parameterized to adapt to different signal types and control logic.

4. Simplified Maintenance and Parameter Management

The SD card slot of 6SL3246-0BA22-1FA0 supports one-click parameter cloning, users can copy the parameters of the equipment through the memory card, quickly replace the control unit without re-parameterization, greatly reducing the downtime of equipment maintenance. At the same time, the control unit supports firmware upgrade through the memory card, which is convenient for users to obtain the latest function updates.

5. High Reliability and Compatibility

Produced by Siemens original factory, the 6SL3246-0BA22-1FA0 has passed strict industrial grade testing, with strong anti-electromagnetic interference ability and stable operating performance, can adapt to the harsh industrial environment. It is compatible with all standard SINAMICS G120 series power modules, users can freely match 0.37kW to 250kW power modules according to the power requirements of the load, to build a inverter system that perfectly matches the application.

Typical Applications

• Conveyor systems: belt conveyors, roller conveyors, sorting conveyors in logistics and warehousing industry
• Material handling equipment: cranes, hoists, automated guided vehicles (AGV)
• Machine tools: spindle drive, feed axis drive for various machine tools
• Packaging machinery: constant tension control, position positioning in packaging production lines
• Textile machinery: speed control of spinning and weaving equipment
• Water treatment: speed regulation control of pumps and fans in water supply and drainage systems
• HVAC systems: energy-saving speed control of central air conditioning fans and water pumps

Ordering Information
