ALLEN BRADLEY 1756-L1 PLC module programmable logic controller 100% Brand New Original

The 1756-L1 has a peak backplane current of 0.65 Amps at 5 Volts DC and 0.02 Amps at 24 Volts DC. It also has an average power dissipation of 3.3 Watts and an average thermal dissipation of 11.3 BTU/hour. The storage temperature of the 1756-L1 is from -40 to 85 Degrees Celsius, while its operating temperature ranges from 0 to 60 Degrees Celsius. It also has a noncondensing relative humidity of 5% to 95%. The storage shock of the 1756-L1 is 50 G peak for 11 milliseconds, while its operating shock is 30 G peak for 11 milliseconds. It also has a 10 to 500 Hertz vibration with a maximum peak acceleration of 2.0 G. If the 1756-L1 has a battery in need of replacement, you can only use the 1756-BA1, which is a 0.59g lithium battery. The programming cable compatible with the 1756-L1 are the category 3 serial cables 1756-CP3 and 1747-CP3.

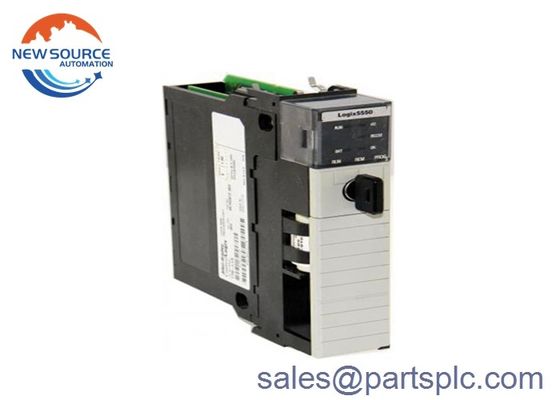

The 1756-L1 is a Programmable Automation Controller (PAC) processor module that belongs to the ControlLogix product family. This processor belongs to one of the earlier versions of ControlLogix, the Logix 5550 category.

This module is installed to any ControlLogix chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13 and 1756-A17. It occupies single slot of the chassis and module power is provided by the backplane which is energized by a ControlLogix Power supply.

Allen Bradley Main Products:

1.SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150
