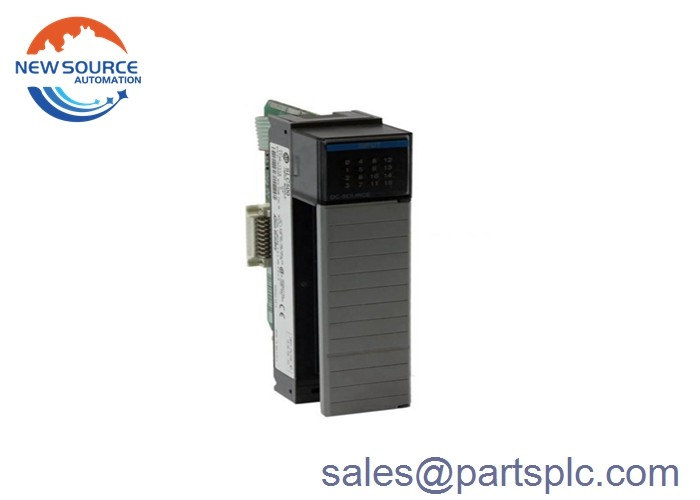

1756-OB16I new Factory Sealed Control Logix 16 Pt D/O Module

Allen Bradley 1756-OB16I Original And Brand New In Stock

Overview For 1756-OB16I

The 1756-OB16I module has also been routine-tested at 1350V AC for 2 s. It has an outputs-to-backplane continuous isolation voltage of 250V and an output-to-output continuous isolation voltage of 125V. It also has an output delay time of a maximum of 1 ms from off to on and a maximum of 2 ms from on to off. Power dissipation of the 1756-OB16I module is 3.6W at 60 Degrees Celsius (maximum) and its thermal dissipation is 12.28 BTU/hr. It has an operating temperature range of 0 to 60 Degrees Celsius and a non-operating temperature range of -40 to 85 Degrees Celsius. The 1756-OB16I is a 1756 ControlLogix Discrete output module that supports sinking and sourcing configuration and operates at a Voltage category of 12/24VDC. This output module is a single slot module that directly installs to the 1756 chassis.

FAQ For 1756-OB16I

· Q:Do you provide warranty for the goods?

· A:Yes, we provide one year warranty for all the goods from us.

· Q: Could you provide technology support?

· A: We're in this field more than 15 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

· Q: Does Online Union keeps goods in stock or only trading?

· A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

Packing Details

1. Global transport will be sent to you by DHL, TNT, EMS, FedEx, or UPS.

If you want to use your shipping account, please contact us, and provide relevant information.

2. If you have an emergency transport order, please contact us, we will do our best to meet your requirements. However, all items will be delivered within three working days after the receipt of payment.

3. Local pickup:

If you want to make an appointment for inspection or pick-up, please contact us in advance.

EtherNet/IP communication modules provide the following features

• Support for messaging, produced/consumed tags, HMI, and distributed I/O.

• Encapsulated messages within standard TCP/UDP/IP protocol

• A common application layer with ControlNet and DeviceNet™ networks

• Interface via RJ45, category 5, unshielded, twisted-pair cable

• Support for half/full duplex 10 M or 100 M operation

• Work with standard switches • No network scheduling required

• No routing tables required
