  1756-A13 Is ControlLogix Chassis

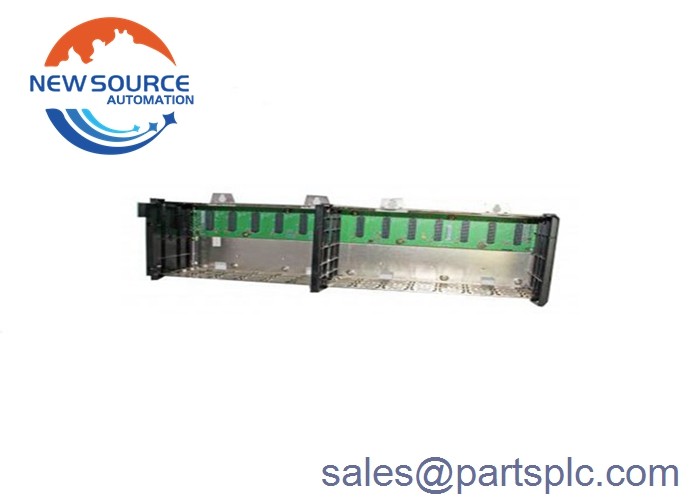

1756-A13 is a ControlLogix chassis from . This chassis provides module housing, providing 13 module slots where ControlLogix controllers and I/O modules may be installed. Aside from providing the mounting slots, the chassis also host the electronic circuitry which make-up the backplane. The backplane distributes the current which is used by each of the module to energize individual circuitry to function properly.

The 1756-A13 supports horizontal mounting only. It requires minimum cabinet size of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.) for installation and weighs 1.90 kg (4.2 lb). It is directly installed to the enclosure subpanel via the provided mounting tabs located on top and bottom of the chassis. Install this chassis at a temperature range of 0…60 °C (32…140 °F) for Series A and B chassis and -25…+60 °C (-13…+140 °F) for Series C chassis. It has operating vibration rating of 2 g @ 10…500 Hz and operating shock rating of 30 g. This chassis may be used with the Logix 5560, 5570 and 5580 product families.

The 1756-A13 has backplane current consumption of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It has power dissipation of 5.4 Watts with an open type enclosure rating. This chassis requires appropriate hardware configuration using the RSLogix 5000 or Studio 5000 Logix designer programming software. Depending on the ControlLogix controller used and firmware revision loaded, the software varies. Typically, Logix 5560 are programmed using RSLogix while Logix 5570 and Logix 5580 are configured using Studio 5000 Logix designer.
