Allen Bradley 1746-IV16 SLC 500 Sourcing Discrete Input Module

1746-IV16

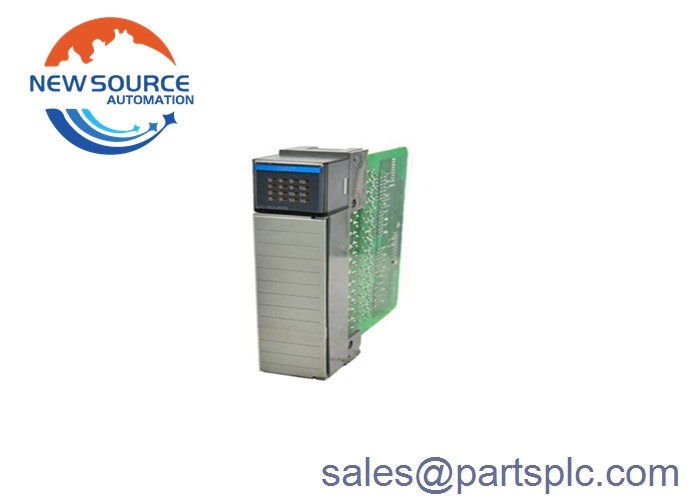

1746-IV16 is an SLC 500 discrete input module. This module features Sixteen (16) sourcing input channels, ideally used for interfacing electrical signaling devices such as switches, auxiliary contacts, sensors and other devices that provide binary or ON/ OFF signal states.

The 1746-IV16 supports source wiring configuration. Commonly, input devices carry the signal voltage and sends this voltage towards the input module via sink wiring configuration. In some scenarios, some electrical signaling devices does not carry an input signal voltage. This is when the 1746-IV16 may be used wherein, the module itself provides the signal voltage to the loop then returns this input channels of the module when the device signal state changes.

Each channel of the 1746-IV16 are designed to be operated at a nominal voltage of 24VDC however, accepts voltage range of 10-30 VDC. Additionally, each requires a nominal input current of 8 mA at 24VDC. The maximum on-state input voltage is 5.0 VDC and the maximum off state input current is 1 mA. Each channel exhibits a maximum signal delay time of 8 ms for both ON to OFF and OFF to ON transitions.

The 1746-IV16 is a single slot wide module that directly installs to any available slot of the 1746 chassis. It may be used as a local I/O module or remote I/O module. It comes with a 16 LED status indicators, each assigned to monitor the state of the input channels. It also comes pre-installed with a removable terminal block that allows modular wiring and simplified module replacement in the event of module malfunction.
