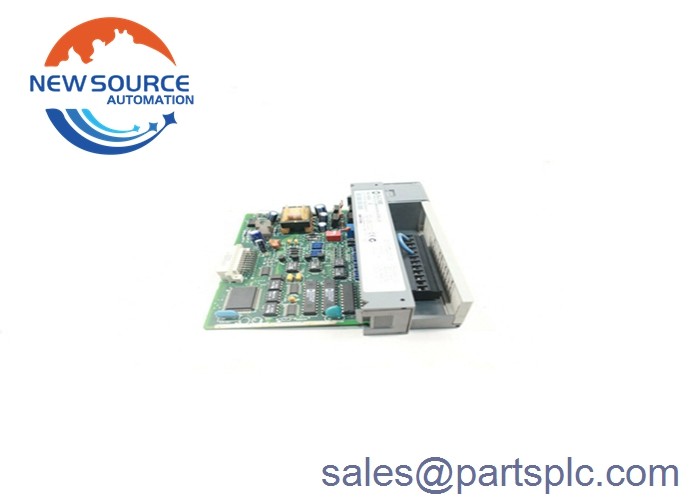

1746-NIO4I is a SLC 500 Analog Combination Module

1746-NIO4I

1746-NIO4I also has a voltage input rating of -10 to 10 Volts DC and a 760 KOhms voltage impedance at a resolution of 305 microVolts per Least Significant Bit (LSB). It also has an accuracy of +/- 0.504%, and a drift accuracy and error of +/- 63 ppm/degree Celsius and +/- 57 ppm/degree Celsius. The 1746-NIO4I offers overvoltage at either 220 Volts AC (RMS) or 220 Volts DC (continuous). The current outputs have a load range of 0 to 500mA with its normal range at 0-20 mA and a 5% over-range capability at 2.56348 microA per LSB signal resolution. The 1746-NIO4I also has an overall accuracy of ±0.541% with a drift accuracy of ±70 ppm/degree Celsius and a gain and offset error of ±0.516% and +/-12 LSB. The entire module has a 500 Volt-tested isolation between fields in the wiring-to-backplane isolation and it has an aggregate update time of 512 microSeconds for all channels. The 1746-NIO4I’s operational temperature ranges between 0 and 60 degrees Celsius at a 5 to 95% non-condensing relative humidity.

The 1746-NIO4I is an analog combination module that features Two (2) Voltage or Current differential, non-isolated input channels and Two (2) Voltage output channels. This module is a single slot module which combines the input and output capabilities

This combination module is compatible for use with SLC 500 fixed or modular style hardware. Data tables that the module creates including module operational parameters are configured using the RSLogix 500 programming. Install this module to any slot in the main chassis except slot 0 where the controller is mounted. It may also be installed in expansion modules or remote I/O stations. If used in Remote I/O stations, this module may not be installed in slot 0 the mentioned slot is reserved for communication adapters such as Remote I/O (RIO), Data Highway Plus (DH+) and Ethernet Communication Adapters.

This module contributes to saving panel space and maximizing the available slots of any SLC 500 rack. Especially in modular style hardware, this module may be strategically installed for proper IO segmentation.
