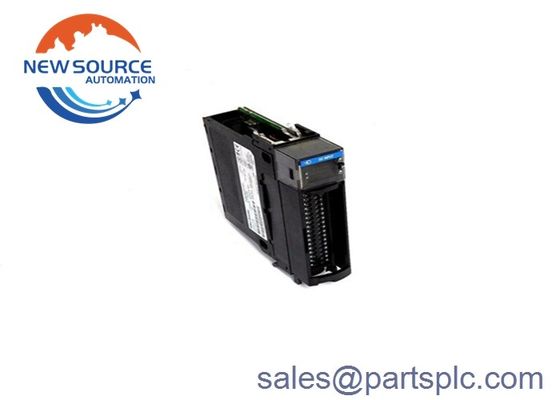

New Factory Sealed 1756-IB16I /A ControlLogix 16 Point D/I Module 1756IB16I

1756-IB16I

1756-IB16I is manufactured by and it is a digital I/O module with 16 inputs. The inputs on the module are individually isolated and the module works along with the 1756 ControlLogix chassis. When trying to install the module, make sure that the input power supply to the system is turned off and make sure to follow the instructions to install the equipment as stated by the manufacturer. The 1756-IB16I operates on an input voltage of 12 to 24 Volts DC and the operating voltage is 10 to 30 Volts DC. The current draw for the 1756-IB16I is 2 mA at 10 Volts DC in the operating mode and the maximum operating current is 10 mA at 30 Volts DC. The power dissipation of the device is 5 watts at 60 degrees Celsius. The recommended ambient operating temperature is 0 to 60 degrees Celsius at a non-condensing humid environment having humidity in the range of 5 to 95%.

The backplane current of the 1756-IB16I is 3 mA at 24 Volts DC and it is 100 mA at 5 Volts DC. While installing the module, users should ensure that there is no electrostatic discharge and that the appropriate safety guidelines are followed to prevent damage to the equipment due to electrostatic discharge.This is important in order to avoid any damage to the equipment and for the safety of the persons operating the device. The minimum clearances and connections should be made and maintained as mentioned in the installation or the replacement manuals. The 1756-IB16I has to be installed with the removable terminal blocks that are the 1756-TBCH and 1756-TBS6H.
