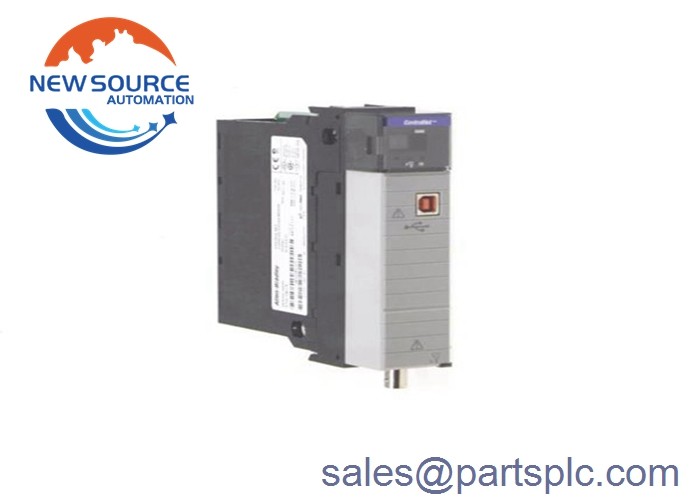

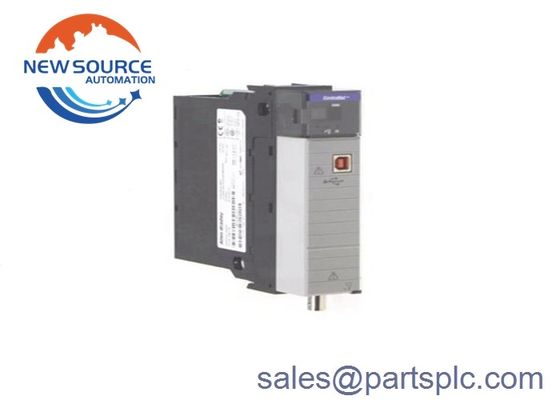

Allen Bradley ControlLogix Bridge Module With 99 Maximum Nodes 1756-CN2

Allen Bradley ControlLogix Bridge Module With 99 Maximum Nodes 1756-CN2


1756-CN2 ControlNet Communication Bridge Module by is a communication module for ControlLogix devices. It offers the ControlNet Network and uses the CIP and the P2P network for high-speed performance. It uses a standard configuration with a 5Mbps communication speed and has a communication capacity of up to 100 Logix connections. The 1756-CN2 can also support a maximum of 128 connections with 99 redistribution points (nodes). It has an electrical rating of 1100mA draw current at 5.1V DC and one of 3.0A at 24V DC and it has an operational power dissipation of 5.6W, with a thermal dissipation of 19.1 BTU/hr.

The 1756-CN2 has an isolation voltage of 30V with a basic insulation type that is tested at 500V for 60s between ControlNet to System. It has a single slot width and it can be installed in any slot on the chassis. It has a ControlNet BNC, a ControlNet RJ45, and a USB 1.1 port and it uses the Quad shield RG6 coaxial ControlNet cable. It has a T4A designated temperature code in North America and an IEC T4 designation code in Europe and it comes in an open-style enclosure. The 1756-CN2 has a functional temperature margin between 0 and 60 °C and it operates best at a relative humidity range of 5-95% with condensation. It has an operational vibration of 2.0G at 10-500Hz and its operational shock rate is up to 30G.
