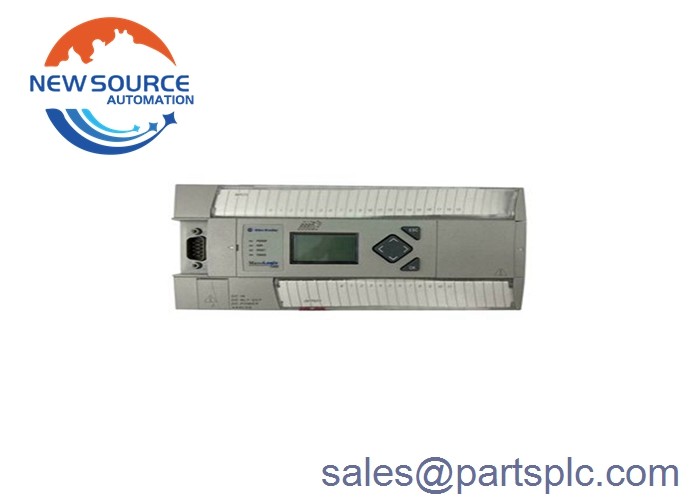

New Allen Bradley 1766L32BXBA MicroLogix 1400, 1766-L32BXBA Series B

1766-L32BXBA

The MicroLogix 1400 controller with catalog number 1766-L32BXBA is a compact Programmable Logic Controller (PLC) that is especially used in micro and small automation requirements. This is an electronic device with built-in features that enable this control to be used out of the box.

The 1766-L32BXBA contributes to cost effectivity as the embedded I/O channels may be expanded by installing up to Seven (7) 1762 I/O modules. Specifically, the built-in input and output includes Twelve (12) Fast 24VDC for high-speed inputs, Eight (8) Normal 24VDC for standard input and signaling devices, Two (2) analog input in the form of 0-10.0 VDC input voltage, Six (6) volt-free relay contact outputs, Three (3) Fast DC outputs, Three (3) Normal DC outputs and Two (2) single-ended 0-10VDC Voltage output channels.

The 1766-L32BXBA has communication protocols such as One (1) isolated RS232 / RS485 combo port, capable One (1) non-isolated RS232 communication port and One (1) Ethernet communication port. These ports may be used to perform data exchange between Human Machine Interface (HMI) device such as PanelView operator Terminals, Supervisory Control and Data Acquisition (SCADA) systems, programming workstations and 3rd party devices such as converters and gateways. Supported protocols by the 1766-L32BXBA includes DF1 Full and Half duplex, DNP3, MODBUS RTU, ASCII and DH485 while with Ethernet, MODBUS TCP, DNP3 and Ethernet I/P are supported.

The 1766-L32BXBA is equipped with internal memory amounting to 20KB, with a replaceable battery back-up using the 1746-BA.

The 1766-L32BXBA controller requires a 24 VDC input power and has battery-backed RAM. It supports 32 digital I/O points with 12 digital fast 24 VDC inputs, 8 digital 24 VDC inputs, 6 relay outputs, 3 fast 24 VDC outputs, 3 normal 24 VDC outputs and 6 analogs (12 bits) I/O points with 4 inputs and 2 outputs. It can connect to up to seven 1762 expansion I/O modules for further expansion.

This controller has physical dimensions of 3.5 x 7.08 x 3.43 inches and weighs 2 pounds. For communication, it has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control.
