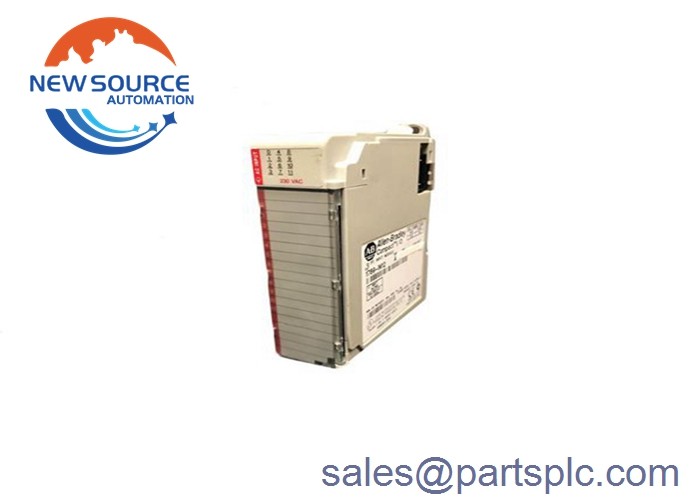

New Factory Sealed 1769-IM12 SER A ConpactLogix 12Pt 240VAC input Module

1769-IM12

The 1769-IM12 compact 240V AC input module by is an AC input module in the compact I/O series which has 12 internally-connected 200 to 240 Volts AC inputs with an operational AC voltage range between 159 to 264 Volts AC at 47 to 63 Hertz and a signal delay ON to OFF time of 20 milliseconds. The 1769-IM12 has a draw current of 100mA and an inrush current of 12mA at 120 Volts AC with an input impedance of 27 kW at 50 Hertz and 23 kW at 60 Hertz. It has a maximum OFF state voltage of 40 Volts AC at 2.5mA and a minimum ON-state voltage of 159 Volts AC at 5mA current.

The 1769-IM12 compact 240 Volts AC input module has an operational isolation voltage of 132 Volts AC with IEC Class 2 reinforced insulation tested at 1836 Volts AC for 1 seconds between input points and BUS. It has one slot width and is installed on the panel mount or on a DIN rail using a terminal screw. It is equipped with a power supply module with an 8-module supply distance rating. It dissipates 3.65W heat and is designed with an open-style enclosure for this reason. It uses copper wire circuits with (22-14 AWG) stranded wire or (22-14 AWG) solid wire. The 1769-IM12 weighs approximately 300g (0.61 pounds) and it has dimensions of 118 x 35 x 87 millimeters (4.65 x 1.38 x 3.43 inches). it has a maximum shock rate of 30G and a maximum vibration of 5G at 10 to 500 Hertz. The 1769-IM12’s functional relative humidity limit is 95% without condensation and it will still retain optimum power rating at an altitude of 2000 meters (6561 feet).
