Allen Bradley 2198-P141 Exhibits 31 KWatts Continuous Output Power

2198-P141

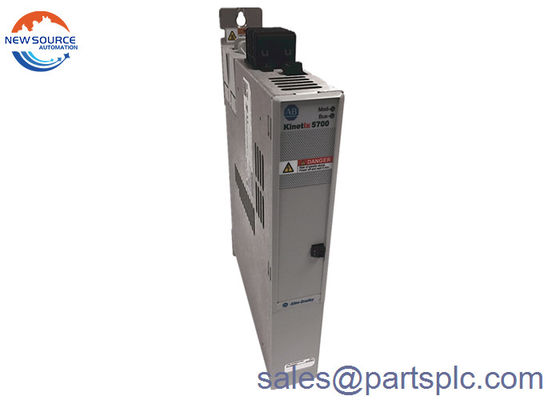

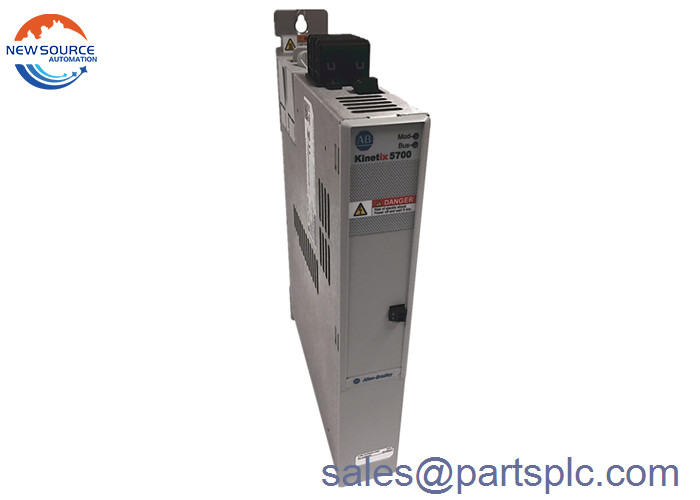

The 2198-P141 is a DC-bus power supply for the Kinetix 5700 servo drive. It has three-phase 324-528V (480V nominal) RMS AC input voltage with a 47 – 63 Hz frequency. It has a module width of 85mm. It has 49.6A main AC input current, a 33A Max inrush (0-peak) current, and a 148.7A peak AC input current. The continuous and peak output current to the bus is 46.9A and 140.8A respectively. The continuous and peak output power to the bus is 31 kW and 93 kW respectively. The 2198-P141 has an internal shunt resistance and shunt power of 13.5Ω and 200W respectively. It has 99% efficiency with 1640μF internal capacitance and 362 J capacitive energy absorption.

The 2198-P141 power supply has an innovative snap fit system that requires no tools and can be easily assembled and installed in the drive. It weighs 15.2 lbs. and has dimensions of 9.29 x 3.35 x 17.04 in. A single Kinetix 5700 drive can support up to 3 power supply modules. Additional power supply modules can be installed to increase the power output to the drive’s single-axis and dual-axis inverters.

The 2198-P141 has a simple, powerful, and compact design for machines requiring large axis counts and higher-than-usual power. The drive has an integrated motion and safety feature that works via the EtherNet/IP network, facilitating its use in large machines. With its high-performance motor control and reduced integration time, it finds application in various industries such as beverages, bag machines, tire building machines, tray loaders etc.
