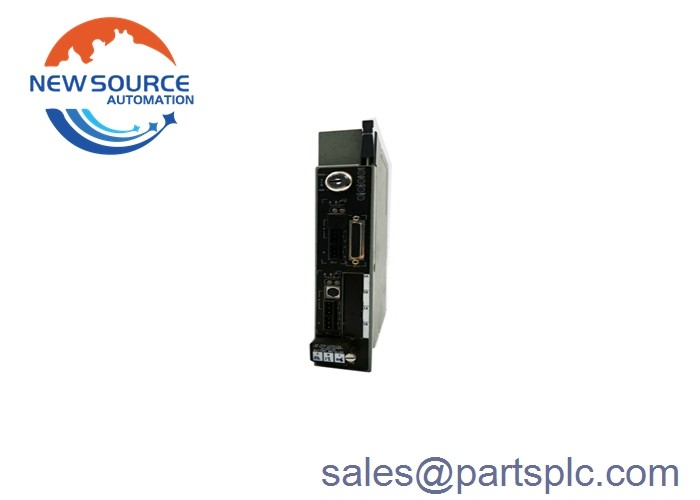

2198-S130-ERS3 Kinetix 5700 Servo Drive Single Axis Inverter

2198-S130-ERS3

The 2198-S130-ERS3 is a Kinetix 5700 Digital Servo Drive. This servo motor controller mainly features 240V /480 V nominal supply voltage; output power of 22.5 kW @ 240 V input and 44.9 kW at 480 V input. The servo drive’s continuous output current is 91.9 A and peak output current of 183.8 A. This drive comes with Two (2) port ethernet that is primarily used to implement integrated motion over Ethernet I/P. It is compatible with controller, specifically from the Logix automation platform such as ControlLogix controllers, GuardLogix controllers, CompactLogix controllers, or Compact GuardLogix controllers, especially controllers with integrated motion support.

The dual Ethernet I/P ports of this drive support implementation of linear and Device Level Ring topologies. Linear is typically used for simplex, non-redundant network while DLR is used for resilient and redundant or fault-tolerant network, increasing the network availability. Supported transmission speeds are 10 / 100 Mbps transmission speed.

The 2198-S130-ERS3 support loop velocities bandwidths of 400 Hz for velocity and 1000 Hz for current loop and Pulse Width Modulation (PWM) frequency of 4 kHz. This drive and the entire Kinetix 5700 Uses Load Observer real-time tuning technology which significantly lessens tuning time and lessens risk of improper operation, compensate from unknown operational mechanics typically observed in belts, flexible couplings and shafts. Similarly, automatic adjustment during operation is achieved.

The 2198-S130-ERS3 features integrated safety via the Safe Torque-Off functionality.
