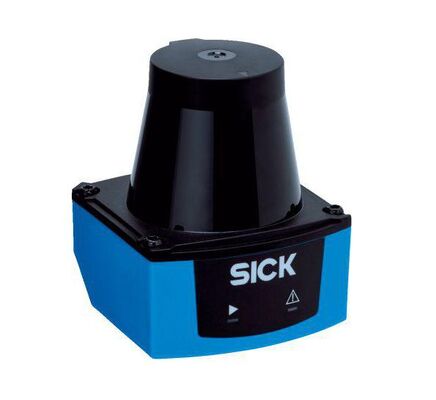

SICK TIM150-3010300 Industrial Sensor Minimum Detection Distance 0.05 m Performance for Automation Systems

  • SICK TIM150-3010300 Industrial Sensor Minimum Detection Distance 0.05 m Performance for Automation Systems
Place of Origin Germany
Brand Name SICK
Model Number TIM150-3010300
Minimum Order Quantity 1
Price INQUIRY
Packaging Details original
Delivery Time In stock/1-3days
Payment Terms T/T
Supply Ability 99+
Product Details
Order No 1093243 Product Type 2D LiDAR Laser Scanner
Laser Class Class 1 Eye-safe Laser Laser Wavelength 850nm Infrared
Max Detection Range 10 M Minimum Detection Distance 0.05 M
Scanning Angle 200° Horizontal Scanning Frequency 14.5 Hz
Highlight

10 m SICK Industrial Sensors TIM150-3010300

,

SICK Industrial Sensors for Automation Systems
Leave a Message
Product Description

SICK TIM150-3010300 2D LiDAR Laser Scanner | Indoor Area Monitoring Sensor

Meta Description: SICK TIM150-3010300 2D LiDAR laser scanner with HDDM+ technology, 10m range, 200° aperture, and IO-Link for indoor object detection, AMR navigation, and collision avoidance. Order now!

Overview of SICK TIM150-3010300 LiDAR Sensor

The SICK TIM150-3010300 (order number: 1093243) is a compact, cost-effective 2D LiDAR laser scanner designed for reliable indoor area monitoring and object detection. Built with SICK's proprietary HDDM+ (High Definition Distance Measurement Plus) technology, this sensor delivers exceptional performance even in challenging lighting conditions, ensuring maximum machine availability for your automation systems.
Ideal for non-safe object presence detection, the TIM150-3010300 offers a perfect balance of precision, ease of use, and affordability, making it a preferred choice for mobile robots, automated guided vehicles (AGVs), and industrial automation applications.

Key Features & Benefits

1. Advanced Detection Technology

  • HDDM+ measurement principle: Ensures reliable object detection even with low-reflectivity surfaces (10% reflectivity: 2.8-3m range)
  • 850nm infrared laser: Class 1 laser (IEC 60825-1:2014), eye-safe for indoor environments
  • 200° horizontal aperture: Provides broad-area coverage, reducing the number of sensors needed
  • 14.5Hz scanning frequency: Consistent environment updates for dynamic applications
  • 1° angular resolution: Fine angle discrimination for accurate target detection

2. Flexible Connectivity & Easy Integration

  • IO-Link interface: Simplifies commissioning, enables parameter cloning, and offers application flexibility
  • 5-pin M12 male connector: Standard industrial connection for easy installation
  • Push-pull digital outputs: For direct connection to PLCs and control systems
  • Dual LED status indicators: Provides clear operational feedback

3. Robust Design & Reliable Performance

  • Compact dimensions: 60 x 60 x 76 mm, perfect for space-constrained installations
  • Wide temperature range: -10°C to +50°C, suitable for various indoor industrial environments
  • High ambient light immunity: Operates reliably in lighting conditions up to 80,000 lx
  • IP30 protection rating: Dust-protected for indoor use
  • Low power consumption: Energy-efficient operation for extended system uptime

Technical Specifications

Parameter Value
Product Name SICK TIM150-3010300 (Order No.: 1093243)
Measurement Principle HDDM+ (High Definition Distance Measurement Plus)
Laser Type 850nm infrared, Class 1 (eye-safe)
Scanning Range 0.05m to 10m (max)
Horizontal Aperture 200°
Scanning Frequency 14.5Hz
Angular Resolution 1°
Response Time 70,000μs (max)
Interface IO-Link, Push-Pull outputs
Power Supply 10-28 VDC
Dimensions 60 x 60 x 76 mm
Weight 150g
Operating Temperature -10°C to +50°C
Storage Temperature -30°C to +70°C
Ambient Light Immunity Up to 80,000 lx
Protection Rating IP30
Certifications CE, UL, cUL, RoHS

Applications

The SICK TIM150-3010300 2D LiDAR scanner excels in a wide range of indoor applications:

1. Mobile Robotics & AMRs

  • Navigation assistance: Provides precise environmental mapping for autonomous mobile robots
  • Collision avoidance: Detects obstacles in real-time to ensure safe operation
  • Positioning: Helps maintain accurate location within dynamic environments

2. Industrial Automation

  • Area monitoring: Protects hazardous zones and prevents unauthorized access
  • Object detection: Verifies presence/absence of workpieces on conveyor belts
  • Dimension measurement: Captures basic size and shape data for quality control

3. Material Handling

  • AGV safety: Ensures safe movement of automated guided vehicles in warehouses
  • Pallet detection: Identifies and locates pallets for automated loading/unloading
  • Shelf monitoring: Checks inventory levels and detects empty slots

4. Machine Safety & Access Control

  • Doorway monitoring: Controls access to restricted areas
  • Machine protection: Prevents collisions between moving machine parts and personnel
  • Queue management: Monitors customer flow in retail and service environments

Why Choose SICK TIM150-3010300?

  1. Proven SICK Quality: Over 70 years of expertise in sensor technology, ensuring reliable performance and durability
  2. Cost-Effective Solution: Combines advanced features with an affordable price point
  3. Easy Configuration: Intuitive software tools for quick setup and parameter adjustment
  4. Seamless Integration: IO-Link interface simplifies connection to existing automation systems
  5. Future-Proof Design: Compatible with Industry 4.0 initiatives and smart factory concepts

Ordering Information

  • Product Model: TIM150-3010300
  • Order Number: 1093243
  • Accessories Available: Mounting brackets, connection cables, configuration software

Frequently Asked Questions (FAQs)

Q: What is the difference between TIM150 and TIM250 models? A: The TIM150 series is designed for indoor applications with a 10m maximum range, while the TIM250 offers outdoor capabilities with a 25m range and higher protection rating (IP67).
Q: Can I use this sensor for outdoor applications? A: No, the TIM150-3010300 is specifically designed for indoor use only (IP30 protection rating). For outdoor applications, consider SICK's TIM250 series or other outdoor-rated LiDAR sensors.
Q: What software do I need to configure the TIM150-3010300? A: SICK provides the SOPAS ET configuration software, which allows intuitive setup, parameter adjustment, and monitoring of the sensor.
Q: Is the TIM150-3010300 compatible with my PLC? A: Yes, the sensor features IO-Link and push-pull outputs for easy integration with most industrial PLCs and control systems.
