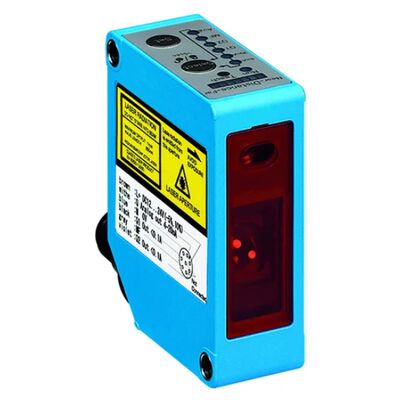

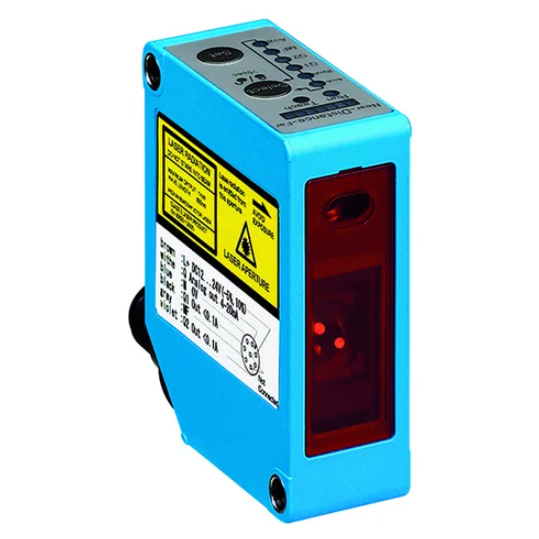

Repeat Accuracy 30 Micrometer Optical Sensor SICK OD2-P120W60I2

Place of Origin	Germany
Brand Name	SICK
Model Number	UM18-218161101
Minimum Order Quantity	1
Price	INQUIRY
Packaging Details	original
Delivery Time	In stock/1-3days
Payment Terms	T/T
Supply Ability	99+

Product Details

Order No	6036625	Product Type	Optical Laser Displacement Sensor
Series	OD2 Miniature Distance Sensor	Measuring Range	60 ~ 180 Mm
Reference Distance	120 Mm	Repeat Accuracy	30 μm
Linearity Error	±120 μm	Weight	Approx 25g
Highlight	SICK Optical Sensor OD2-P120W60I2 , SICK Industrial Sensors OD2-P120W60I2

Leave a Message

Product Description

SICK OD2-P120W60I2 Optical Displacement Sensor | High-Precision Non-Contact Measurement

Introduction to SICK OD2-P120W60I2 Displacement Sensor

The SICK OD2-P120W60I2 (Ordering Number: 6036625) is a high-performance optical displacement sensor from the renowned OD Value series, designed for precise non-contact distance measurement in demanding industrial environments. This compact rectangular sensor combines advanced laser technology with robust construction to deliver reliable, repeatable measurements across a wide range of materials and surfaces.

Whether you need to monitor fill levels, verify part alignment, or position components with micron-level accuracy, the OD2-P120W60I2 offers the performance and flexibility to optimize your automated processes.

Key Features & Technical Specifications

Core Performance Metrics

Specification	Value
Measuring Range	60 mm to 180 mm (nominal 120 mm ± 60 mm)
Output Type	4-20 mA current output + 2 x PNP digital outputs
Repeatability	30 µm (under standard conditions)
Linearity	± 120 µm (under standard conditions)
Response Time	≥ 1 ms
Measuring Frequency	≤ 2 kHz

Technical Advantages

Visible Red Laser Class 2 (IEC 60825-1:2014) for safe operation and easy alignment
Compact Design (20 mm x 40 mm x 15 mm) for space-constrained installations
IP67 Protection Rating for dust-tight and waterproof operation in harsh industrial settings
2 m Integrated Cable for flexible mounting and connection
Mean-Value Setting (1–64x) for enhanced measurement stability
Automatic Sensitivity Adjustment to handle varying surface conditions
Teachable Analog Outputs for quick and easy setup
Invertible Digital Outputs for versatile integration into control systems

How It Works: Advanced Optical Displacement Technology

The SICK OD2-P120W60I2 utilizes time-of-flight measurement principles to determine the distance to an object with exceptional precision. The sensor emits a visible red laser beam (1 mm x 1.5 mm spot size at 120 mm distance) that reflects off the target surface. By measuring the time it takes for the light to travel to the object and back, the sensor calculates the exact distance and converts this into a proportional 4-20 mA analog signal and two PNP digital outputs.

This non-contact measurement method eliminates wear and tear associated with physical contact sensors, ensuring long service life and consistent performance even in high-cycle applications.

Applications: Versatile Solutions for Industrial Challenges

The OD2-P120W60I2 excels in a wide range of industrial applications across multiple sectors:

Manufacturing & Assembly

Precision Positioning: Guide robots for windshield installation, component placement, and dispensing operations
Fill Level Monitoring: Check liquid or bulk material levels in containers and hoppers
Part Alignment: Verify correct positioning of components during assembly processes
Double Sheet Control: Detect multiple layers during sheet feeding operations

Robotics & Automation

Gripper Positioning: Ensure exact placement of tools and workpieces
Carriage Alignment: Maintain precise positioning of moving parts in automated systems
Magazine Positioning: Optimize handling of solar panels, electronic components, and other delicate items

Quality Control & Inspection

Height Monitoring: Measure and verify the dimensions of optical components, castings, and machined parts
Film Thickness Measurement: Monitor remaining film on winding machines
Ingot Mould Monitoring: Ensure proper ejection of ingots in casting processes

Installation & Setup: Quick Integration for Immediate Results

The OD2-P120W60I2 is designed for straightforward installation and configuration:

Mounting: Chassis mount design allows for secure attachment in any orientation
Power Supply: Operates on 12–24 V DC for compatibility with standard industrial power systems
Connection: 2 m integrated cable simplifies wiring to control systems
Teach-In: Intuitive setup via multifunctional input for laser-off, external teach-in, and trigger functions
Configuration: Adjust mean-value settings and output parameters to match specific application requirements

Why Choose SICK OD2-P120W60I2?

Industry-Proven Reliability: SICK's 70+ years of sensor expertise ensure long-term performance and durability
Unmatched Precision: 30 µm repeatability enables high-accuracy process control
Flexible Integration: Multiple output options and teachable functions adapt to diverse system requirements
Robust Construction: IP67 protection withstands dust, moisture, and harsh operating conditions
Cost-Effective Solution: Reduces downtime and maintenance costs compared to contact-based measurement systems

Technical Specifications (Full Details)

Category	Specifications
Mechanical	- Housing Material: Plastic - Dimensions: 20 mm x 40 mm x 15 mm - Weight: 25 g (approx.) - Connection Type: 2 m cable
Electrical	- Supply Voltage: 12–24 V DC - Current Consumption: ≤ 50 mA - Output Current: 4–20 mA (analog), 100 mA max per PNP output
Environmental	- Operating Temperature: -10°C to +40°C - Storage Temperature: -25°C to +70°C - Protection Rating: IP67 (IEC 60529)
Laser Characteristics	- Type: Visible red laser - Laser Class: 2 (IEC 60825-1:2014) - Wavelength: 650 nm - Light Spot Size: 1 mm x 1.5 mm (at 120 mm distance)

Ordering Information

Part Number: OD2-P120W60I2 (6036625)
Accessories: Mounting brackets, protective covers, and extension cables available separately

Conclusion

The SICK OD2-P120W60I2 optical displacement sensor delivers the precision, reliability, and flexibility needed to optimize industrial processes in manufacturing, robotics, and quality control applications. With its non-contact measurement technology, robust construction, and easy integration, this sensor is an excellent investment for businesses seeking to improve efficiency, reduce costs, and enhance product quality.
