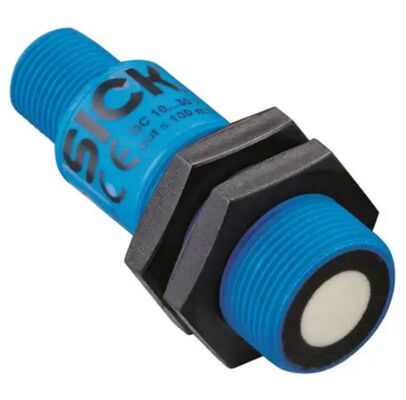

SICK UM18-218161101 Photoelectric Sensor Precision Industrial Automation Component for Measurement Solutions

  • SICK UM18-218161101 Photoelectric Sensor Precision Industrial Automation Component for Measurement Solutions
Place of Origin Germany
Brand Name SICK
Model Number UM18-218161101
Minimum Order Quantity 1
Price INQUIRY
Packaging Details original
Delivery Time In stock/1-3days
Payment Terms T/T
Supply Ability 99+
Product Details
Order No 6048420 Sensing Technology Ultrasonic (200 KHz Typical Frequency)
Operating Range 120 Mm – 1,000 Mm Limiting Range 1,300 Mm
Resolution ≥ 0.2 Mm Weight 15 G
Protection Rating IP65 / IP67
Highlight

SICK Photoelectric Sensor UM18-218161101

,

SICK Industrial Sensors UM18-218161101
Leave a Message
Product Description

SICK UM18-218161101 Ultrasonic Distance Sensor – Precision & Reliability for Industrial Automation

Overview

The SICK UM18-218161101 (Order No.: 6048420) is a high-performance M18 cylindrical ultrasonic distance sensor from SICK’s UM18 series, engineered for precise, non-contact distance measurement and object detection in challenging industrial environments. Designed with a compact, robust form factor and advanced ultrasonic technology, it delivers exceptional accuracy, repeatability, and flexibility for automation, material handling, packaging, and logistics applications.

Key Features

  • Precision Sensing Range: Operating range 120 mm to 1,000 mm; limiting range up to 1,300 mm for versatile detection.
  • High Accuracy & Resolution: Resolution ≥ 0.2 mm, repeatability ± 0.15%, and measurement accuracy ± 1% for reliable readings.
  • Fast Response: 80 ms response time and 10 Hz switching frequency support high-speed automation cycles.
  • Multi-Mode Operation: Configurable for Distance to Object (DtO), Window (Wnd), or Object Between Sensor & Background (ObSB) via teach-in.
  • Robust Construction: IP65/IP67-rated PBT plastic housing (ultrasonic transducer: polyurethane foam/glass epoxy resin) for dust and water resistance.
  • Wide Temperature Tolerance: Operates reliably from -25°C to +70°C, ideal for harsh industrial settings.
  • Flexible Electrical Interface: 10–30 V DC supply, ≤ 1.2 W power consumption, PNP digital output (≤200 mA), and reverse-polarity/short-circuit protection.
  • Easy Integration: M18 × 1 thread, M12 4-pin male connector, and 15 g lightweight design for simple mounting in tight spaces.
  • Visual Status Indication: Two LEDs for power, output, and fault diagnostics.

Technical Specifications

Parameter Value
Model UM18-218161101
Order Number 6048420
Sensing Technology Ultrasonic (200 kHz typical frequency)
Operating Range 120 mm – 1,000 mm
Limiting Range 1,300 mm
Resolution ≥ 0.2 mm
Repeatability ± 0.15% (relative to measured value)
Accuracy ± 1% (relative to measured value)
Response Time 80 ms
Switching Frequency 10 Hz
Output 1 × PNP digital (≤200 mA)
Supply Voltage 10–30 V DC
Power Consumption ≤ 1.2 W (no load)
Housing Cylindrical, PBT plastic
Dimensions 18 mm × 18 mm × 52.7 mm
Weight 15 g
Protection Rating IP65 / IP67
Operating Temperature -25°C to +70°C
Connection M12, 4-pin male connector

Applications

  • Factory Automation: Conveyor line object detection, presence/absence monitoring, and position control.
  • Material Handling: Pallet detection, box height measurement, and stack level monitoring.
  • Packaging Industry: Fill level control, package positioning, and label detection.
  • Logistics & Warehousing: Automated storage/retrieval systems and AGV obstacle avoidance.
  • General Industrial: Liquid level monitoring, door/gate automation, and non-contact distance verification.

Why Choose SICK UM18-218161101?

SICK is a global leader in sensor technology, and the UM18-218161101 embodies decades of innovation in ultrasonic sensing. Its combination of precision, durability, and ease of use makes it a cost-effective solution for industrial automation projects. Whether you need reliable distance measurement in extreme temperatures or flexible object detection for dynamic production lines, this sensor delivers consistent performance and seamless integration into your systems.
