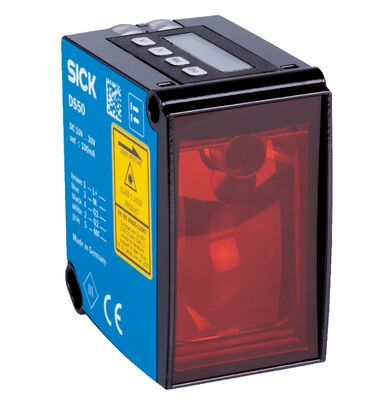

SICK DS50-P1112 Industrial Sensors for Accurate Distance Measurement and Process Control

  • SICK DS50-P1112 Industrial Sensors for Accurate Distance Measurement and Process Control
Place of Origin Germany
Brand Name SICK
Model Number DS50-P1112
Minimum Order Quantity 1
Price INQUIRY
Packaging Details original
Delivery Time In stock/1-3days
Payment Terms T/T
Supply Ability 99+
Product Details
Part No 1047402 Product Type Laser Distance Sensor
Series DX50 Series Place Of Origin Germany
Condition Original New Warranty 1 Year
Highlight

SICK DS50 P1112 Industrial Sensors

,

SICK Industrial Sensors Accurate Distance Measurement
Leave a Message
Product Description

SICK DS50-P1112 Laser Distance Sensor | High-Precision Time-of-Flight Measurement for Industrial Automation

Overview

The SICK DS50-P1112 (Ordering Number: 1047402) is a mid-range time-of-flight (ToF) laser distance sensor from the renowned SICK Dx50 product series, engineered for reliable and precise distance measurement in industrial environments. With a measurement range of 200 mm to 10 meters and an accuracy of ±10 mm, this sensor delivers consistent performance across various surface types, making it an ideal solution for automation, logistics, and material handling applications.

Key Features & Benefits

Exceptional Measurement Performance

  • Time-of-Flight Technology: Utilizes advanced ToF principles for non-contact distance measurement, unaffected by surface color or texture variations
  • Broad Range & Precision: Measures from 200 mm to 10 m with ±10 mm accuracy and 1 mm resolution
  • Reliable Repeatability: 5 mm (standard) / 2.5 mm (optimized) repeatability ensures consistent results
  • Fast Response: Adjustable response time of 10 ms (fast mode) or 50 ms (slow mode) to match application requirements

Versatile Configuration Options

  • Dual PNP Outputs: Configurable as switching points, windows, or background suppression for flexible integration
  • Multifunctional Input: Supports laser off, external teach, or deactivated modes
  • Intuitive Interface: LC display and dual LED indicators for easy setup, alignment, and status monitoring
  • Advanced Functions: Moving average filtering (fast/slow), scaling and inversion of digital outputs, adjustable hysteresis, and crosstalk safety

Rugged Industrial Design

  • Robust Construction: Die-cast zinc housing with PMMA window for durability in harsh conditions
  • IP65 Protection: Resistant to dust and water jets, suitable for demanding industrial environments
  • Wide Temperature Range: Operates from -30°C to +65°C for extreme temperature applications
  • Secure Connection: M12 5-pin male connector for reliable electrical connections

Technical Specifications



Parameter Value
Measurement Range 200 mm to 10 m
Accuracy ±10 mm
Resolution 1 mm
Repeatability 5 mm / 2.5 mm
Response Time 10 ms / 50 ms
Switching Frequency 50 Hz / 10 Hz
Light Source Visible red laser (Class 2, IEC 60825-1)
Light Spot Size 15 mm x 15 mm (at 10 m distance)
Outputs 2 x PNP (100 mA max per output)
Supply Voltage 10 V DC to 30 V DC
Power Consumption ≤ 1.85 W
Dimensions (WxHxD) 36.1 mm x 62.7 mm x 57.7 mm
Weight 0.50 lb (approx. 227 g)
Protection Rating IP65
Operating Temperature -30°C to +65°C
Certifications CE, cULus, EMC, China-RoHS

Applications & Use Cases

The SICK DS50-P1112 excels in a wide range of industrial applications, including:

Logistics & Warehousing

  • AGV (Automated Guided Vehicle) collision avoidance and positioning
  • Storage & Retrieval Systems (AS/RS) inventory management
  • Conveyor belt material detection and positioning
  • Manufacturing & Processing
  • Loop control in metal, paper, and plastic processing
  • Crane and hoist positioning systems
  • Machine tool material handling and part detection

Material Handling

Level monitoring in large containers and slos

  • Pallet detection and dimensioning
  • Robotic arm positioning and object detection

 Heavy Industry

  • Mining equipment positioning
  • Construction machinery safety systems
  • Port terminal container handling

Why Choose SICK DS50-P1112?

  1. Proven Reliability: SICK is a global leader in sensor technology with over 70 years of experience
  2. Easy Integration: Compatible with most industrial control systems and PLCs
  3. Cost-Effective: Provides high-end performance at a competitive price point
  4. Low Maintenance: Rugged design minimizes downtime and maintenance costs
  5. Future-Proof: Part of the SICK Dx50 series with ongoing support and compatibility

Ordering Information

  • Model: DS50-P1112
  • Ordering Number: 1047402
  • Package: Bulk
  • Warranty: 1 year

Related Products

  • SICK DS50-P1113: Similar to DS50-P1112 with NPN outputs
  • SICK DS50-P1122: Long-range version with 20 m measurement capability
  • SICK DS500-P111: High-precision version with 0.1 mm resolution
