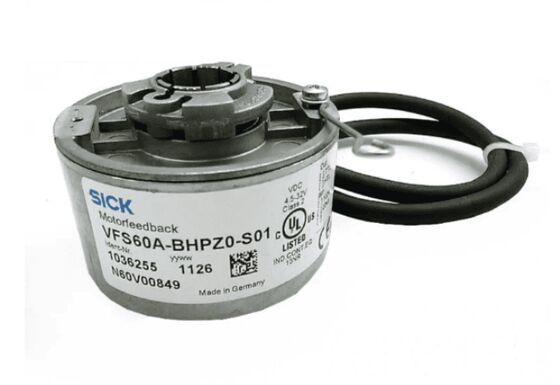

SICK VFS60A-BHPZ0-S01 Incremental Rotary Encoder High Accuracy Sensor for Industrial Automation Systems

  • SICK VFS60A-BHPZ0-S01 Incremental Rotary Encoder High Accuracy Sensor for Industrial Automation Systems
Place of Origin Germany
Brand Name SICK
Model Number VFS60A-BHPZ0-S01
Minimum Order Quantity 1
Price INQUIRY
Packaging Details original
Delivery Time In stock/1-3days
Payment Terms T/T
Supply Ability 99+
Product Details
Order No 1036255 Product Type Incremental Rotary Encoder
Series VFS60A Series Condition Original New
Place Of Origin Germany Pulses Per Revolution (PPR) 8192 PPR
Highlight

VFS60A-BHPZ0-S01 SICK Sensor

,

SICK Industrial Sensors High Accuracy
Leave a Message
Product Description

SICK VFS60A-BHPZ0-S01 Incremental Motor Feedback Encoder | High Precision 8192 PPR

Meta Description: SICK VFS60A-BHPZ0-S01 is a high-performance incremental optical encoder with 8192 PPR resolution, Push-Pull (HTL) output, and IP65 protection. Ideal for CNC machines, robotics, and industrial automation systems. Buy now for reliable motor feedback.

Product Overview

The SICK VFS60A-BHPZ0-S01 is a premium incremental optical encoder designed for demanding motor feedback applications in industrial automation environments. As part of SICK's renowned VFS60 series, this encoder delivers exceptional precision, reliability, and durability to ensure optimal performance in motion control systems. With a high resolution of 8192 pulses per revolution (PPR), robust construction, and flexible connectivity options, it's the ideal choice for applications requiring accurate position and speed feedback.

Key Features & Benefits



Unmatched Precision & Performance



  • 8192 PPR resolution: Provides exceptional positioning accuracy for precise motion control
  • Incremental optical technology: Ensures reliable signal generation even at high speeds
  • Push-Pull (HTL) output: Compatible with standard industrial controllers (24V systems) and suitable for long cable runs
  • High maximum speed: Supports up to 6,000 RPM for dynamic applications

 Robust & Reliable Design

  • IP65 protection rating: Resistant to dust and water jets, suitable for harsh industrial environments
  • -20°C to +85°C operating temperature range: Functions reliably in extreme conditions
  • 10mm solid shaft: Ensures secure mounting and torque transmission
  • 60mm housing diameter: Compact design fits most motor applications
  • M23 radial connector (12-pin): Secure, industrial-grade connection with easy installation
  • High shock and vibration resistance: Withstands demanding industrial conditions

 Versatile & User-Friendly

  • 4.5V to 32V wide voltage range: Flexible power supply options
  • Low current consumption (60mA): Energy-efficient operation
  • EMC compliance: Meets EN 61000-6-2 and EN 61000-6-4 standards for reliable performance in electrically noisy environments
  • Easy integration: Compatible with most industrial motion controllers and drives

Technical Specifications



Parameter Value
Model Number VFS60A-BHPZ0-S01 (Order No. 1036255)
Type Incremental optical rotary encoder for motor feedback
Resolution 8,192 PPR (pulses per revolution)
Output Signal Push-Pull (HTL)
Shaft Type 10mm solid shaft
Housing Diameter 60mm
Connection M23 radial connector, 12-pin
Supply Voltage 4.5V to 32V DC
Current Consumption 60mA max
Max Speed 6,000 RPM
Protection Rating IP65 (shaft side), IP67 (housing side)
Operating Temperature -20°C to +85°C
EMC Compliance EN 61000-6-2, EN 61000-6-4

Applications



The SICK VFS60A-BHPZ0-S01 encoder excels in a wide range of industrial applications requiring precise motor feedback:
  • CNC machine tools: Provides accurate position feedback for milling, turning, and grinding machines
  • Industrial robotics: Enables precise joint positioning and motion control
  • Automated production lines: Ensures synchronized movement of conveyors, pick-and-place systems, and packaging machinery
  • Servo motor systems: Delivers critical feedback for closed-loop control of speed and position
  • Material handling equipment: Optimizes performance of automated storage and retrieval systems (AS/RS)
  • Printing and paper processing: Maintains consistent web tension and registration
  • Textile machinery: Ensures precise yarn tension and fabric positioning

Why Choose SICK VFS60A-BHPZ0-S01?

  1. Proven Quality: SICK is a global leader in sensor technology with decades of experience in industrial automation
  2. Long Service Life: Robust design and high-quality components ensure reliable operation for years
  3. Cost-Effective: Low maintenance requirements and long lifespan reduce total cost of ownership
  4. Technical Support: Access to SICK's global network of technical experts and comprehensive documentation
  5. Future-Proof: Compatible with current and future industrial control systems

Frequently Asked Questions

Q: What is the difference between HTL and TTL outputs? A: HTL (Push-Pull) outputs are compatible with 24V industrial systems and offer better noise immunity for long cable runs, while TTL outputs are typically 5V and better suited for short distances.
Q: Can this encoder be used in outdoor applications? A: While it has IP65 protection, it's designed for industrial indoor use. For outdoor applications, additional environmental protection may be required.
Q: What is the maximum cable length supported? A: HTL outputs typically support longer cable runs (up to 100m) compared to TTL outputs, depending on noise conditions and cable quality.
Q: Does this encoder require any special configuration? A: No special configuration is needed. Simply ensure your controller is set to recognize 8192 PPR resolution.
